Ta Cheng Mortar Mixers series of strong horse power
Mixers easy to assemble kits easy to move.
Honorable holding several monopolies registered in Taiwan .
The monopoly No. of this machine registered in the US is US 6386747.

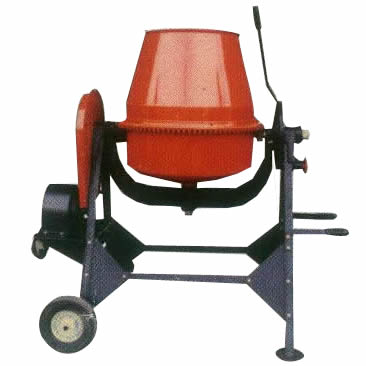

Type

CEMENT MIXER

Model

101

TUB
VOLUME

5-1/2”CU.FT

TUB
SIZE

Ø 44-61-71-cm

TUB
TILT

360 °

Power

220V1HPmotor

G..W.

145Kgs

PS.

Either matching with motor or engine

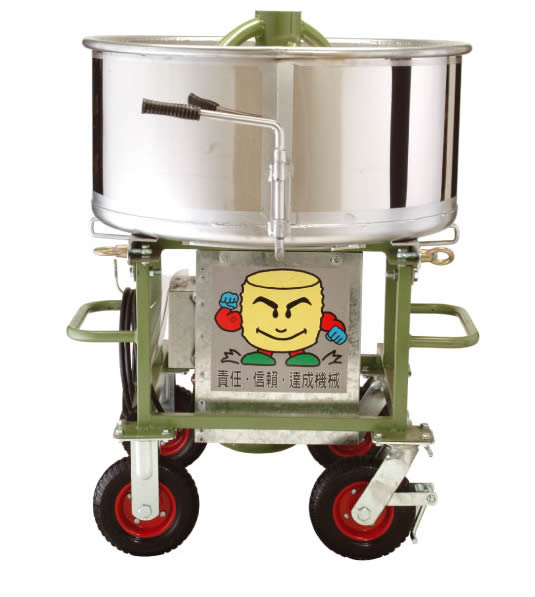

Type
700型
Power
1-phase 220V-2HP gear motor
Speed
38RPM
Size

TUB : Ø 700x350(mm)760x700x960(mm)

Capacity
135L
Total weight
105KG
Characteristic

Small amount of windowseamfilling,horticultural use,etc.

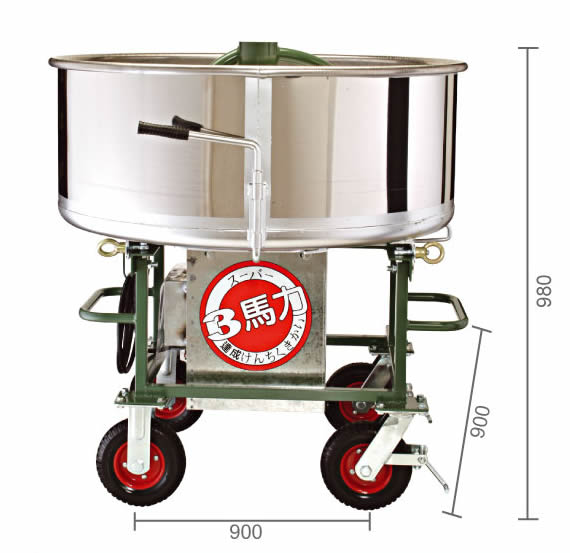

Type
HP-3
Power
1-phase 220V-3HP gear motor
Speed
42RPM
38RPM
Size
TUB : Ø 900x370(mm)900x900x980(mm)
Capacity
235L
Total weight
115KG

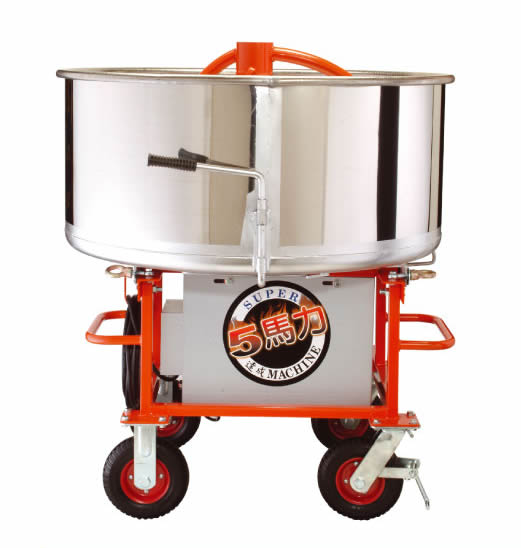

Type
HP-5
Power
3-phase 220V-5HP gear motor
Speed
43RPM
Size
TUB :
Ø 900x420 (mm)
900x900x1030
(mm)
TUB :
Ø 1000x400 (mm)
1000x1000x1010
(mm)
Capacity
267L
314L
Total weight
128KG
137KG

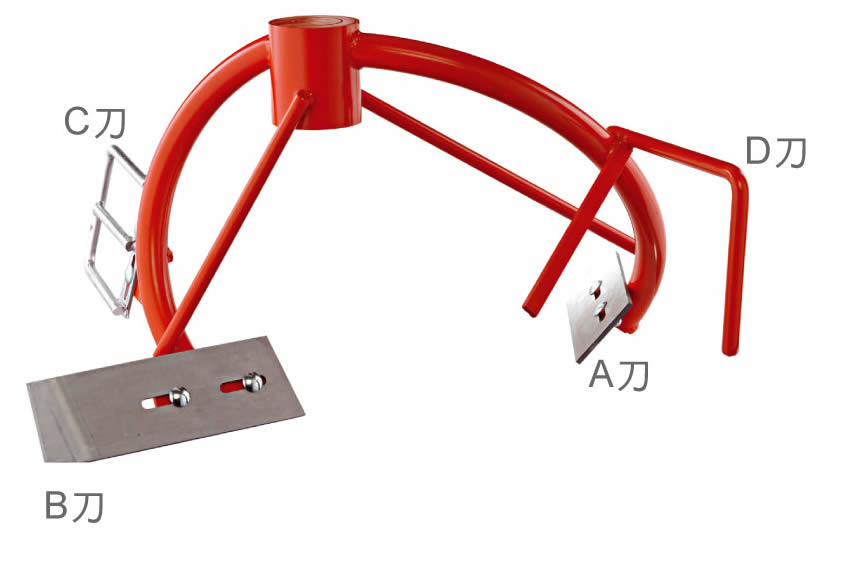

Type

Mixer Arm

Material
steel stainless (for the special purpose of food cooking or chemical industry)
Size
700,850,900,1000(mm) Ø 28mm
Characteristic
Thick arm, The angle of the mixer arm is special, Fast, not over-flowed, resistant.

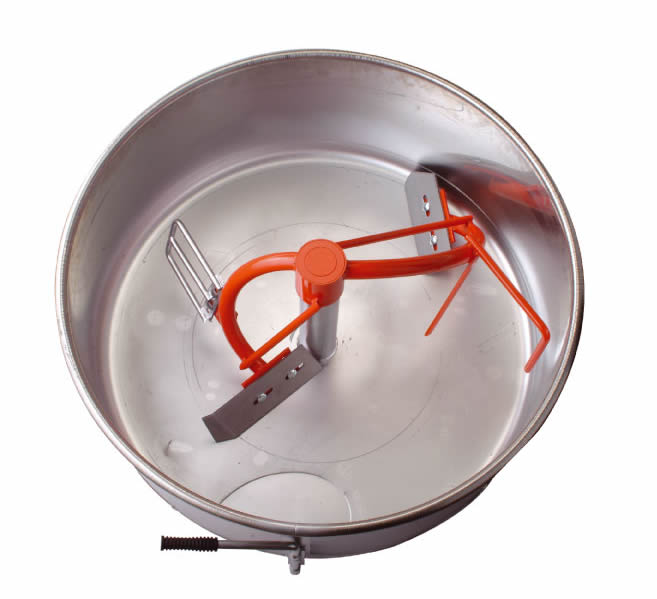

Type
Mixing Tank
Material

1.the material of the tank bottom is iron and the main body of the tank is made of stainless steel.
2. The whole body of the tank is made of stainless steel.

Size
Ø 700,850,900,1000(mm)
P.S.
Special sizes can be ordered

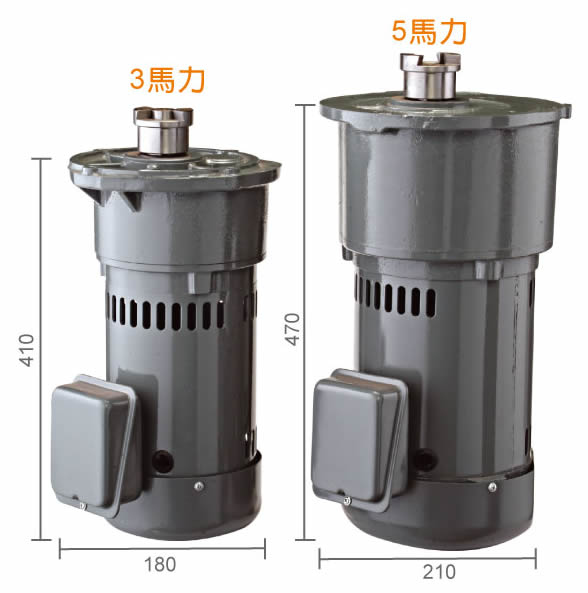

Direct Gear Motor Specification
Type
3HP
5HP
Power
1-phase 220V-3HP gear motor 3-phase 220V-5HP gear motor
Total weight
33KG
44KG
3HP
Characteristic

Medium load of mortar mixing, animal food mixing,etc.

5HP
Characteristic
Heavy load,of ground securing mixing,
chemical materials of high viscosity mixing,
stones of 15-mini meter mixing,
It can also be matched with mortar sprayers

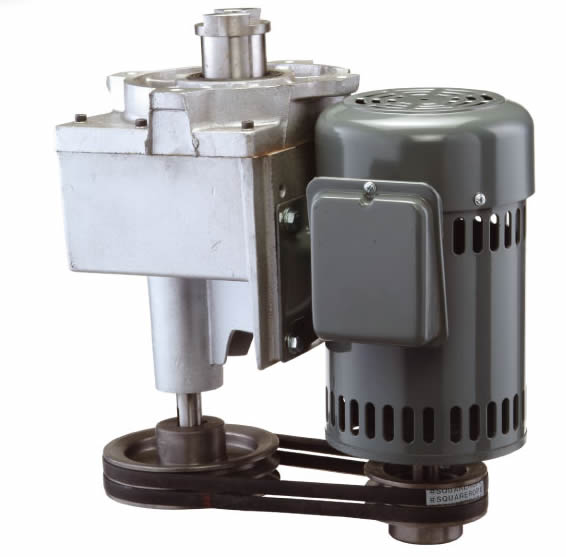

Power
Belt gear motor
Gear motor for special purpose
Speed
36∼40RPM
Total weight
43KG
Suitable
Mini stones mixing , materials of high viscosity mixing,etc.
Characteristic
Low noise, resistant, powerful, good public praise.
